Dettagli:
|
| Modello: | Doppio asse | Durata: | 30 anni |
|---|---|---|---|
| Ispezionare il rapporto: | SÌ | Tempo di lavoro: | 24 ore |
| Garanzia: | 5 anni | Applicazione: | New Energy |
| Struttura: | Avvolgere il verme | Blocco automatico: | Sì |
| Evidenziare: | slewing ring drive,worm drive motor |
||
Description

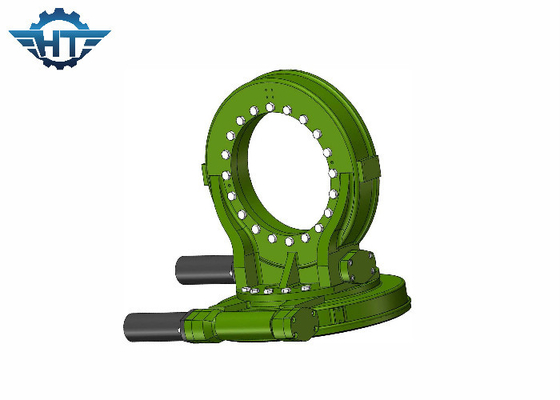

Dual axis solar tracking system adopts slewing drives as its rotation part, makes the tracking more easier, more reliable and more efficient.
The slew drives supporting the structure has strong adaptability to different terrain. The dual axis tracker can be installed in hillside and marsh land without leveling ground also solves angular deviation during installation which facilitates generation efficiency.
1. Efficient, reliable
2. Can be installed in any place
3. Water proof, anti-rust surface
Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Main Features
1) Power generation efficiency increased by 35%~40%.
2) Simple structure, easy in installation and debugger application.
3) Adopting advanced quality raw materials
4) Adapt to outdoor environment,working temperature -50~80C°.
5) Running in a high automation and intelligence,no pollution.
6) Plastic powder painting will ensure 25 years service life.
