| Materiale: | 50Mn, 42CrMo | Modello: | SDE7" |
|---|---|---|---|
| Rapporto di marce: | 57:1 | Coppia di torsione della potenza nominale: | 2000 Nm |
| Tenuta della coppia di torsione: | 13500 Nm | Inclinazione della coppia di torsione: | 13200 Nm |
| Efficienza: | 40% | Colore standard: | RAL 9006 |
| Evidenziare: | solar tracker drive,slewing drive for solar tracking system |
||

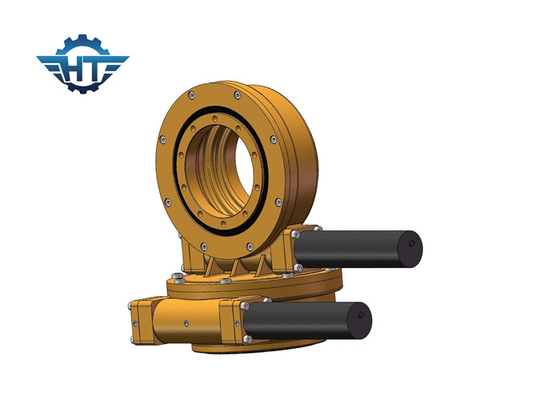

SDE Series Dual Axis Small Slew Drive With Different Types Of Motors For Tower Solar Thermal Power
Description
History of Tower Photothermal
The design concept of the tower solar thermal power generation system was proposed by the former Soviet Union in the 1950s. In 1950, the former Soviet Union designed the world's first small tower-type solar thermal power station, and carried out extensive and fundamental exploration and research on solar thermal power generation technology. According to incomplete statistics, there were more than 20 megawatt-scale solar thermal power experimental power stations built in the world from 1981 to 1991, the main form of which is the tower power station, with a maximum power generation of 80 MW. In July 2013, China's Qinghai Zhongkong Delingha 50MW tower solar thermal power station-Phase I-10MW project was successfully integrated into Qinghai Power Grid, indicating that China's self-developed solar thermal power generation technology has taken solid steps toward commercial operation.
Slew Drives Applied In Tower CSP
| Model | Ratio | Rated Output Torque | Tilting Torque | Axial Load | Radial Load | Holding Torque | Efficiency | Precision | Self-locking | Weight |
| N.m | N.m | kN | kN | N.m | degree | Yes | kg | |||
| 3" | 31:1 | 300 | 1500 | 3.6 | 15 | 7000 | 40% | ≤0.05 | Yes | 21kg |
| 5" | 37:1 | 650 | 5000 | 16 | 27 | 9200 | 40% | ≤0.05 | Yes | 32kg |
| 7" | 57:1 | 1750 | 7000 | 34 | 58 | 13200 | 40% | ≤0.05 | Yes | 54kg |
| 9" | 61:1 | 4300 | 16000 | 60 | 130 | 27200 | 40% | ≤0.05 | Yes | 88kg |
| 12" | 78:1 | 5600 | 25000 | 77 | 190 | 40560 | 40% | ≤0.05 | Yes | 157kg |
| 21" | 125:1 | 16000 | 89000 | 337 | 640 | 65000 | 40% | ≤0.05 | Yes | 481kg |
Features
1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function
Applicatons
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
